DeepTriDrill – Die and Mold – AH9130
IMPROVED PRODUCTIVITY
DeepTri-Drill provided 14 times productivity gain over competitor's gun drill. Also eliminated the need for regrinding, simplifying tool management.
Share
| Industry | Die & Mold |
|---|---|
| Component | Die block |
| Material ISO code |
 P - Steel |
| Work material | S50C |
| Machine(spindle type) | Horizontal Machining Center |
| Tool family | Holemaking |
| Tool category | Deep hole drilling |
| Product name | DeepTri-Drill |
| TSR No. | 5166D |

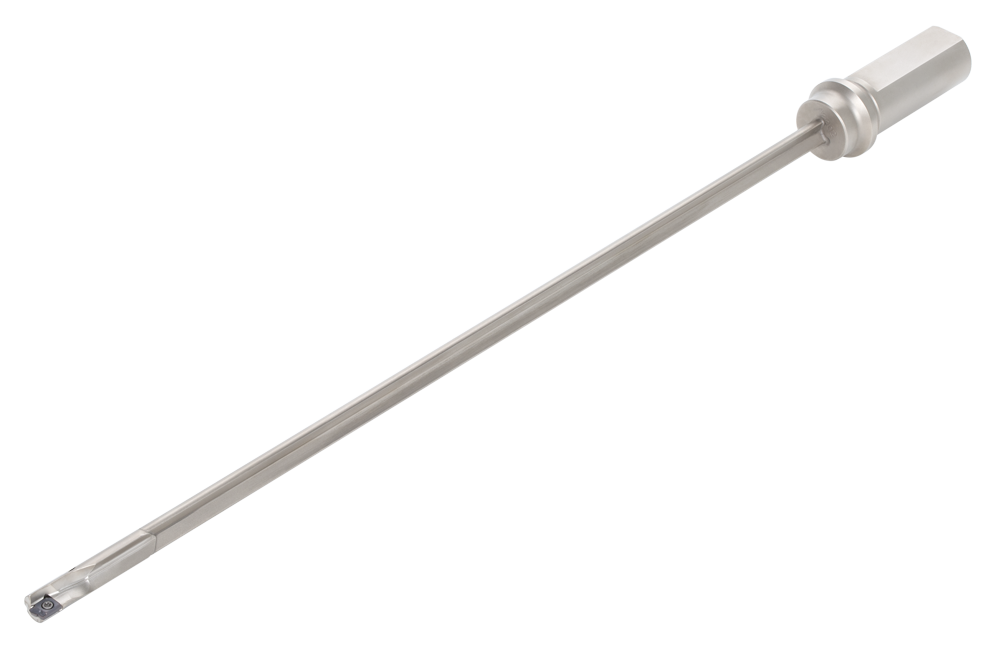

Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | MCTR08.00XM20-25 | HSS drill |
| Insert | ZSGT040104R-NDJ AH9130 | |
| Grade | AH9130 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Tool diameter DC (mm) | 8 | 8 |
| Hole depth H (mm) | 200 | 200 |
| Cutting speed V/c (mm/min) | 80 | 15 |
| Feed f (mm/rev) | 0.08 | 0.03 |
| Feed speed Vf (mm/min) | 255 | 18 |
| Coolant | Wet | Wet |
