TungMeister – Mold – AH715
IMPROVED PRODUCTIVITY
TungMeister featuring shaper cutting edge than competitor prevented welding on cutting edge, providing excellent surface finish with improved productivity.
Share
| Industry | Die & Mold |
|---|---|

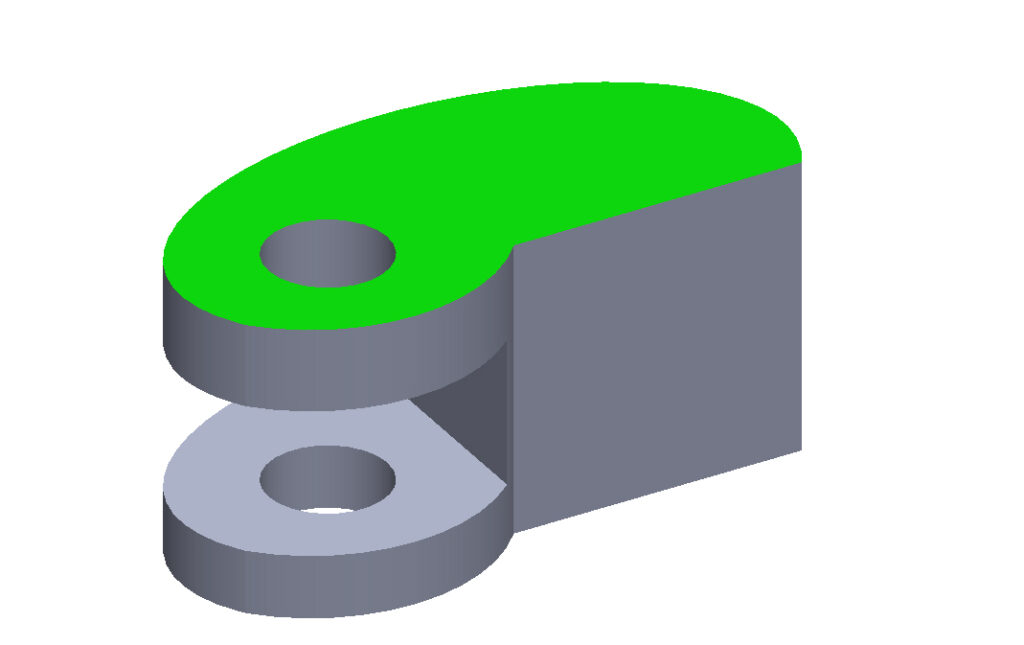

| Component | Mold |
| Material ISO code |
 P - Steel |
| Work material | NAK80 |
| Machine(spindle type) | Vertical Machining Center Middle(#40,HSK63) |
| Tool family | Milling |
| Tool category | Face milling |
| Product name | TungMeister |
| TSR No. | 1583M |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | VSSD12L090S08-S | Indexable radius end mill |
| Effective number of teeth | 4 | 2 |
| Cutting diameter | 12 | 12 |
| Insert | VED120L09.0R10-04S08 | Spade type insert |
| Number of cutting edges | 1 | 1 |
| Grade | AH715 | PVD |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (mm/min) | 83 | 151 |
| Feed per tooth f/z (mm/t) | 0.07 | 0.05 |
| Feed speed Vf (mm/min) | 620 | 400 |
| Depth of cut ap (mm) | 0.15 | 0.15 |
| Width of cut ae (mm) | 10 | 10 |
| Coolant | Air blow | Air blow |
