BXA20-L – Gear Housing – BXA20
IMPROVED TOOL LIFE
GNGA insert with a 70ﾟnose angle, combined with L style (S01315) edge prep, enabled light cutting, while BXA20 grade provided increased wear resistance. GNGA insert eliminated the formation of white layer* on the finished surface, while providing 7 times better tool life. *Phase transformation of the machined workpiece surface caused by mechanical and thermal impact inflicted during turning or grinding operation.
Share
| Industry | Automotive |
|---|---|

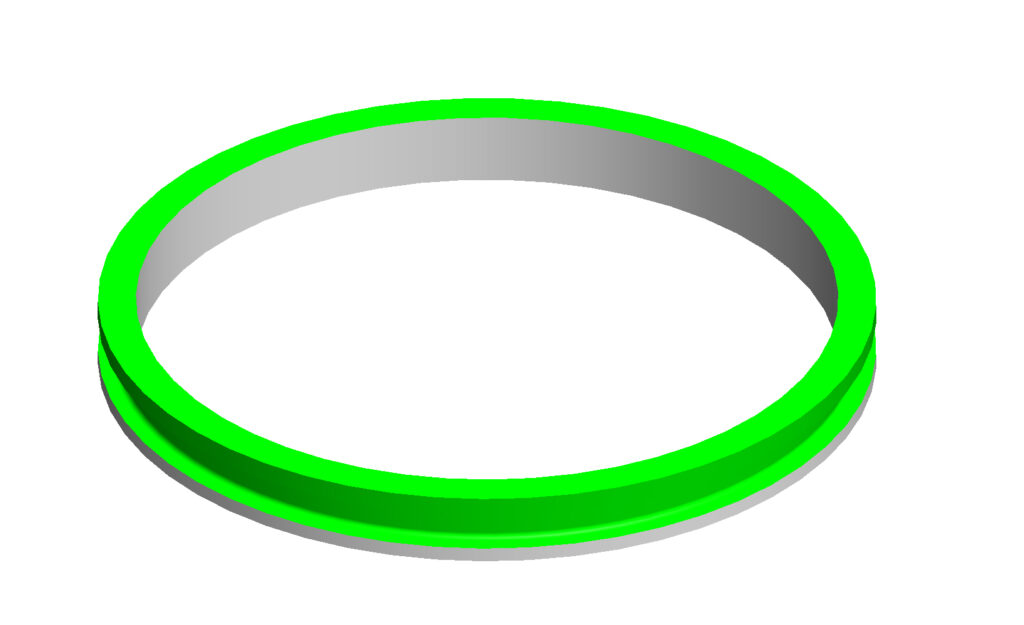

| Component | Gear housing |
| Material ISO code |
 H - Hardened material |
| Work material | SCM415 |
| Machine(spindle type) | CNC Lathe |
| Tool family | Turning |
| Tool category | Face turning |
| Product name | BXA20 |
| TSR No. | 1430T |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Holder | ACLNR2525M12-A | ACLNR2525M12-A |
| Insert | 2QP-GNGA120404-L | CNGA120404 |
| Grade | BXA20 | Uncoated CBN(H20) |
Tool life
| Tungaloy | Competitor | |
|---|---|---|
| Tool life (pcs/edge) | 147 | 21 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (mm/min) | 200 | 200 |
| Feed f (mm/rev) | 0.15 | 0.15 |
| Depth of cut ap (mm) | 0.2 | 0.2 |
| Coolant | Wet | Wet |
