DrillForceMeister – Axle housing – AH9130

IMPROVED PRODUCTIVITY

SMC head enables stable machining due to its unique cutting edge design, which provides excellent biting performance. The increased stability allows for higher feed rates compared to the current products.

DrillForce-Meister
Industry Heavy
Component Axle housing
Material ISO code K - Cast ironK - Cast iron
Work material FCD700
Machine(spindle type) Horizontal Machining Center Large(#50,HSK100)
Tool family Holemaking
Tool category Drilling
Product name DrillForce-Meister
TSR No. 5031D

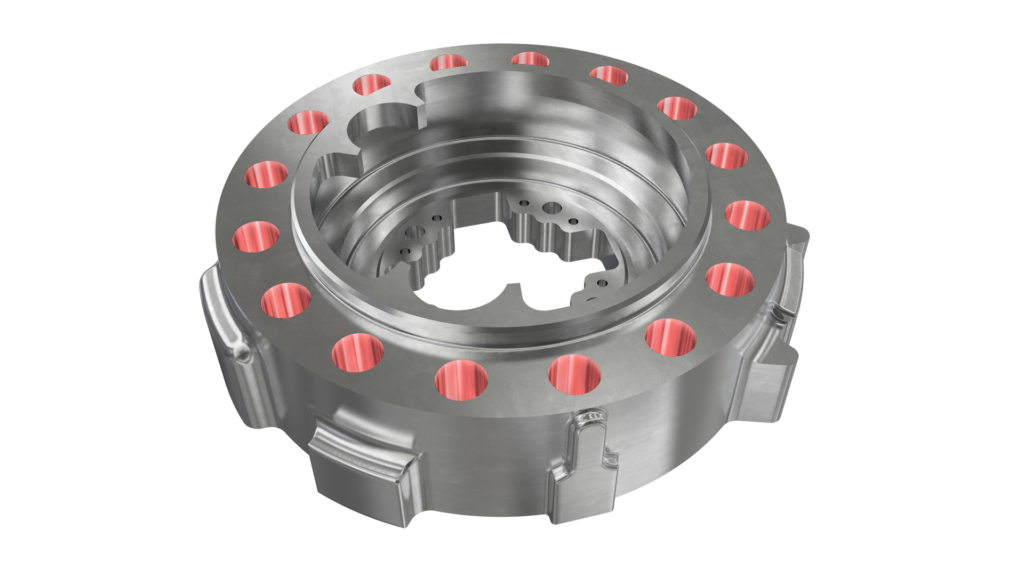

Axle housing

Tool

Tungaloy Competitor
Body TIS270F32-8 Head exchangeable drill
Head SMC270 Drill head
Grade AH9130 PVD

Cutting conditions

Tungaloy Competitor
Tool diameter DC (mm) 27 27
Hole depth H (mm) 154 154
Cutting speed V/c (mm/min) 40 20
Feed f (mm/rev) 0.3 0.4
Feed speed Vf (mm/min) 141 94
Coolant internal coolant internal coolant

Result

PRODUCTIVITY1.5 times
