DrillForceMeister – Control Valve – AH9130
IMPROVE PRODUCTIVITY
DrillForceMeister provided 8 times longer tool life thanks to its highly wear resistant AH9130 grade and 5 times higher productivity thanks to SMC self-centering cutting edge and rigid head clamping.
In addition, the use of head-changeable drills eliminated the need for re-grinding.
Easier tool management because there is no need to modify the machine program after regrinding and only new drill head needs to be replaced.
Share
| Industry | Heavy |
|---|---|
| Component | Control Valve |
| Material ISO code |
 K - Cast iron |
| Work material | FCD600 |
| Machine(spindle type) | Horizontal Machining Center Large(#50,HSK100) |
| Tool family | Holemaking |
| Tool category | Drilling |
| Product name | DrillForce-Meister |
| TSR No. | 5192D |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | TIS260F32-8 | HSS drill |

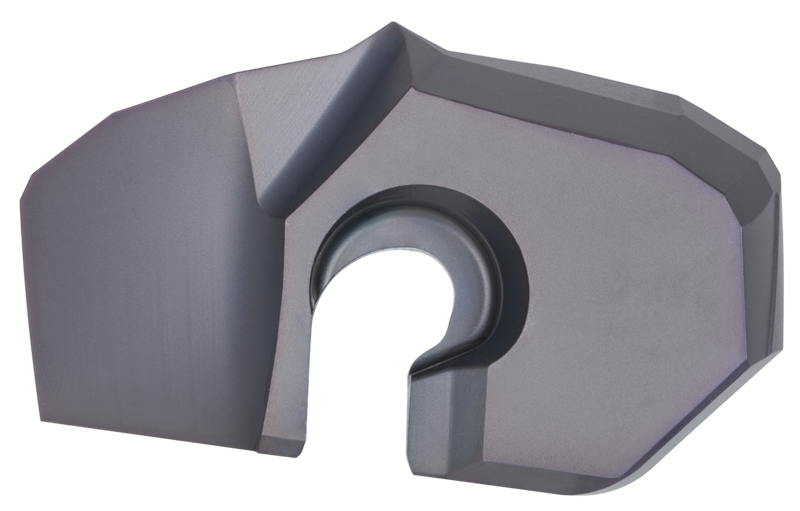

| Head | SMC260 | ー |
| Grade | AH9130 | PVD |
Tool life
| Tungaloy | Competitor | |
|---|---|---|
| Tool life (m/insert) | 40 | 5 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Tool diameter DC (mm) | 26 | 26 |
| Hole depth H (mm) | 100 | 100 |
| Cutting speed V/c (m/min) | 60 | 20 |
| Feed f (mm/rev) | 0.2 | 0.12 |
| Feed speed Vf (mm/min) | 147 | 29 |
| Coolant | Internal Coolant | Internal Coolant |
