TungForceRec – Machine Parts – DS2005
COST REDUCTION & IMPROVED PRODUCTIVITY
Thanks to the sharp cutting edge of TungForceRec and the high resistance to welding of the DS2005 DLC coating, excellent surface finish was achieved. This has significantly reduced tooling costs and improved machining efficiency compared to previous process.
Share
| Industry | Engineering |
|---|---|
| Component | Machine Parts |
| Material ISO code |
 N - Non-ferrous metal |
| Work material | A5052 |
| Machine(spindle type) | Multi-axis Lathe |
| Tool family | Milling |
| Tool category | Shoulder milling |
| Product name | TungForce-Rec |
| TSR No. | 5669M |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | EPAV06M010C10.0R02 | Solid Endmill |
| Number of teeth | 2 | 3 |
| Cutting diameter | 10 | 10 |
| Overhang (mm) | 20 | 30 |

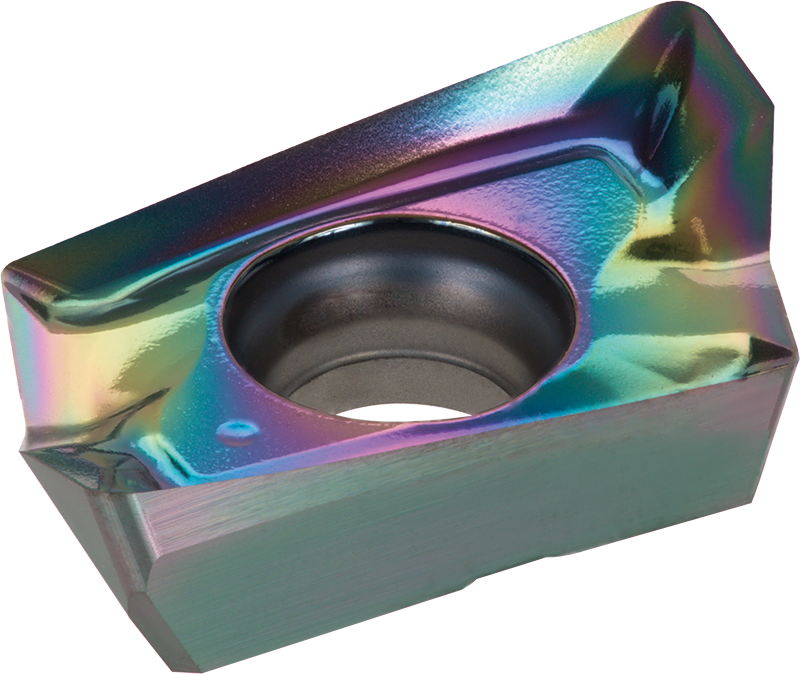

| Insert | AVGT060302PBFR-AJ | - |
| Number of cutting edges | 2 | - |
| Grade | DS2005 | DLC-coated |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 126 | 126 |
| Feed per tooth f/z (mm/t) | 0.08 | 0.05 |
| Feed speed Vf (mm/min) | 642 | 602 |
| Depth of cut ap (mm) | 2 | 2 |
| Width of cut ae (mm) | 4 | 4 |
| Coolant | External | External |
