DeepTriDrill, Control valve, AH9130
IMPROVED PRODUCTIVITY

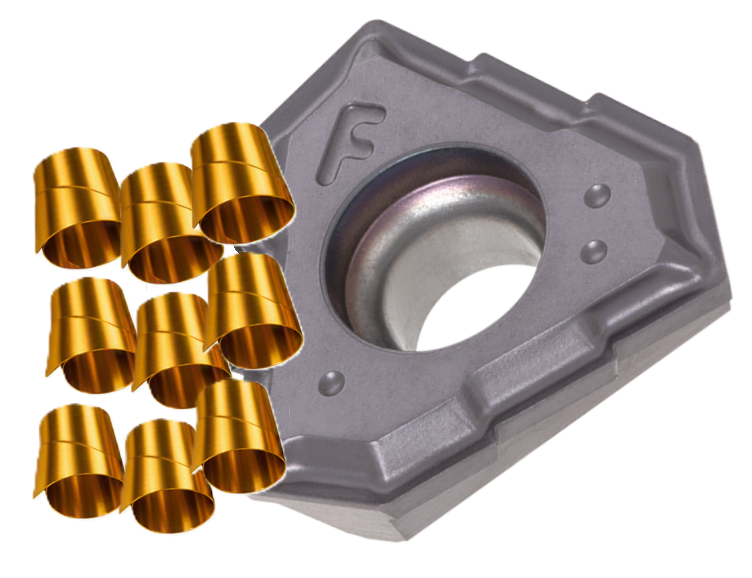

Compared with brazed gun drills, DeepTriDrill enables more than two times higher productivity by finely breaking chips and ensuring smooth chip evacuation.
Share
| Industry | Shipbuilding industry |
|---|---|
| Component | Control Valve |
| Material ISO code |
 P - Steel |
| Work material | C45 |
| Machine(spindle type) | Horizontal Machining Center Middle(#40,HSK63) |
| Tool family | Holemaking |
| Tool category | Deep hole drilling |
| Product name | DeepTri-Drill |
| TSR No. | 5667D |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | MCTRCH08.00XM20-45 | Brazed gun drill |
| Insert | ZSGT040104R-NDJ AH9130 | |
| Grade | AH9130 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Tool diameter DC (mm) | 8 | 8 |
| Hole depth H (mm) | 290 | 290 |
| Cutting speed V/c (m/min) | 60 | 60 |
| Feed f (mm/rev) | 0.06 | 0.03 |
| Feed speed Vf (mm/min) | 143 | 71.5 |
| Coolant | Water-Soluble | Water-Soluble |
