Face milling – Plate – AH3225
IMPROVED TOOL LIFE
Tool life was extended compared to conventional products by using AH3225, a PVD grade for machining steel and stainless steel that achieves a high level of balance between wear resistance and fracture resistance.
Share
| Industry | Engineering |
|---|---|
| Component | Machine Parts |
| Material ISO code |
 M - Stainless steel |
| Work material | SUS304/X5CrNi18-10 |
| Machine(spindle type) | Horizontal Machining Center Middle(#40,HSK63) |
| Tool family | Milling |
| Tool category | Face milling |

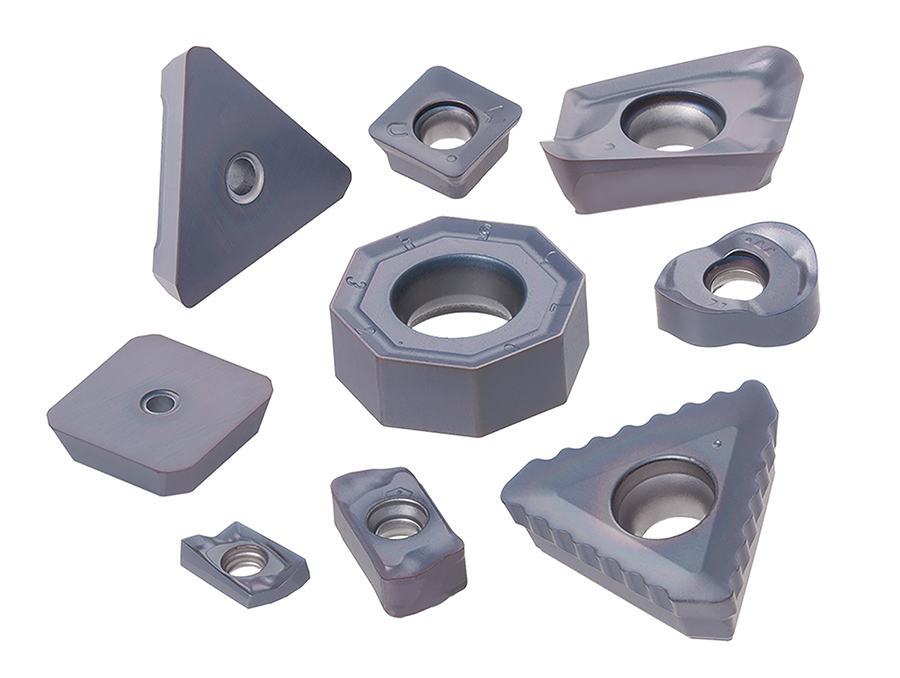

| Product name | AH3225 |
| TSR No. | 125961M |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | Competitor's body | |
| Number of teeth | 6 | 6 |
| Cutting diameter | φ125 | φ125 |
| Insert | SEET13T3AGEN-MM | 4 corner positive insert |
| Number of cutting edges | 4 | 4 |
| Grade | AH3225 | PVD |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 150 | 150 |
| Feed per tooth f/z (mm/t) | 0.1 | 0.1 |
| Feed speed Vf (mm/min) | 229 | 229 |
| Depth of cut ap (mm) | 0.5 | 0.5 |
| Width of cut ae (mm) | 80 | 80 |
| Coolant | External coolant | External coolant |
