Cermet-Selector switch parts-NS9530
improved tool life
The customer requested an extension of tool life. For their automated production line, they needed a tool life of up to 500 pcs/edge, similar to other tools.
Without changing the cutting conditions, testing the combination of TM breaker and NS9530 resulted in stable machining at 500 pcs/edge, 1.7 times longer tool life than competitor's CVD grades.
NS9530 demonstrated excellent wear resistance, leading to a successful replace from CVD grades.
Share
| Industry | Engineering |
|---|---|

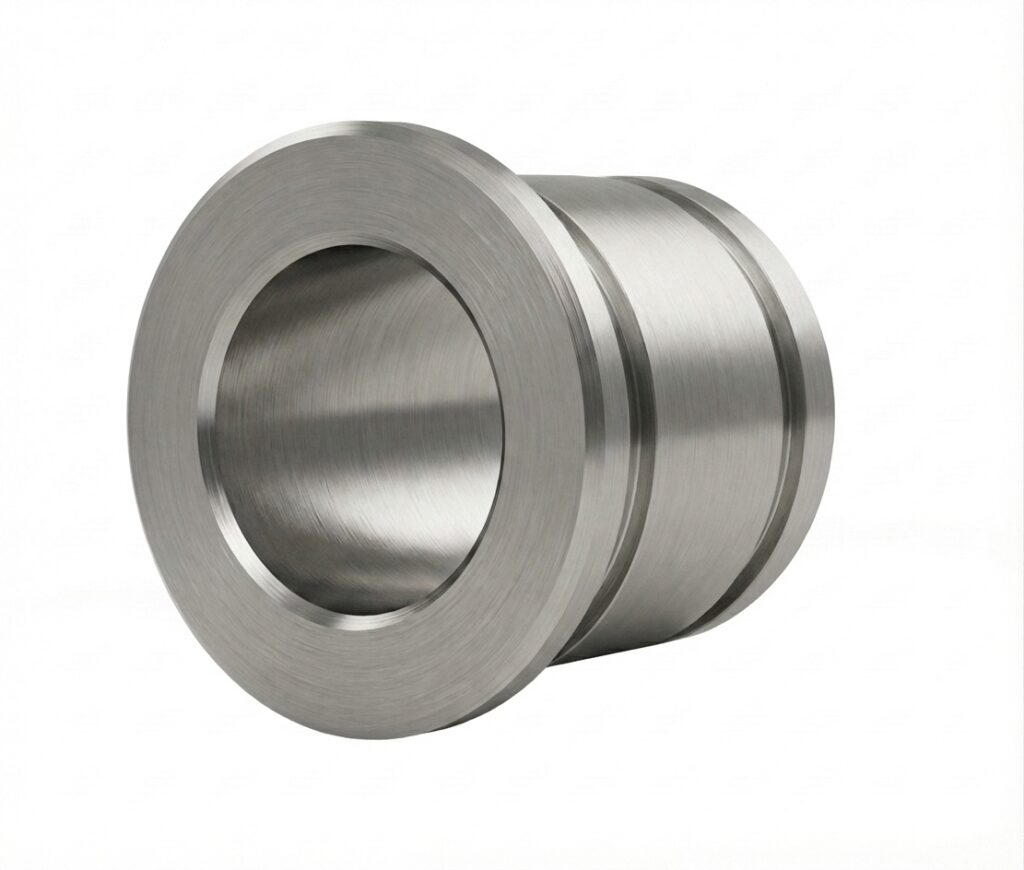

| Component | Selector switch parts |
| Material ISO code |
 P - Steel |
| Work material | SCM440 |
| Machine(spindle type) | CNC Lathe |
| Tool family | Turning |
| Tool category | External turning |
| Product name | NS9530 |
| TSR No. | 5628T |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Holder | Standard tool holder | Standard tool holder |
| Insert | CCMT09T308-TM | CCMT09T308-medium breaker |
| Edges par insert | 2 | 2 |
| Grade | NS9530 | CVD P15 grade |
Tool life
| Tungaloy | Competitor | |
|---|---|---|
| Tool life (pcs/edge) | 500 | 300 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 120 | 120 |
| Feed f (mm/rev) | 0.2 | 0.2 |
| Depth of cut ap (mm) | 3.0 | 3.0 |
| Coolant | Wet | Wet |
