AddDoFeed – Mold for mask – AH8015
IMPROVED TOOLLIFE AND PRODUCTIVITY
In mold machining, solid end mills had traditionally been used, but they posed challenges in achieving higher productivity.
The high-feed tool AddDoFeed enables stable high-feed machining even in small diameters, allowing increased depths of cut and feed rates compared with conventional tools.
In addition, the highly wear‑resistant AH8015 grade significantly extends tool life.
Share
| Industry | Die & Mold |
|---|---|

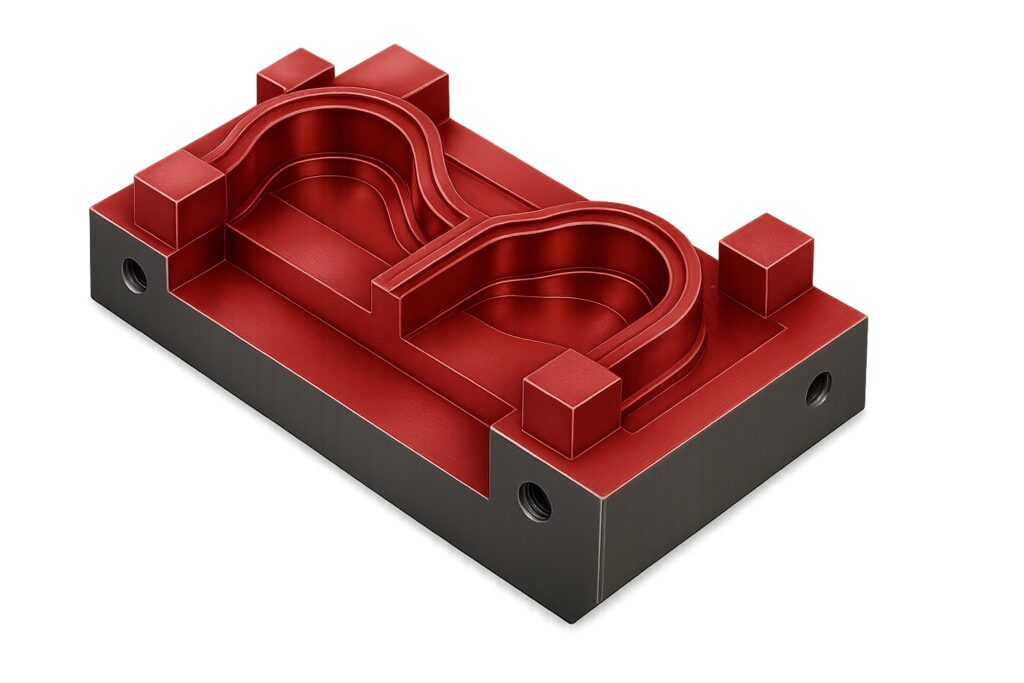

| Component | Mold |
| Material ISO code |
 H - Hardened material |
| Work material | NAK80 |
| Material hardness | 58HRC |
| Machine(spindle type) | Vertical Machining Center Middle(#40,HSK63) |
| Tool family | Milling |
| Tool category | High feed milling |
| Product name | AddDoFeed |
| TSR No. | 5513M |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | EXN02R010M10.0-02 | 10，Z4 Solid endmill |
| Number of teeth | 2 | 4 |
| Cutting diameter | 10 | 10 |
| Insert | LNMU0202ZER-MM | |
| Number of cutting edges | 4 | 1 |
| Grade | AH8015 | PVD |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 62.8 | 157 |
| Feed per tooth f/z (mm/t) | 0.5 | 0.15 |
| Feed speed Vf (mm/min) | 2000 | 3000 |
| Depth of cut ap (mm) | 0.5 | 0.15 |
| Width of cut ae (mm) | 7 | 7 |
| Coolant | Air | Air |
