TungSix-Drill – Valve – AH9030
IMPROVED TOOL LIFE
- The special design of DJ chipbreaker allows excellent chip control even when machining low carbon alloy steel. (Long chips are usually created while machining this type of work material.)
- TungSix-Drill provides significantly long insert life due to the combination of its increased number of corners and AH9030 grade’s high wear resistance.
Share
| Industry | Oil & Gas |
|---|---|

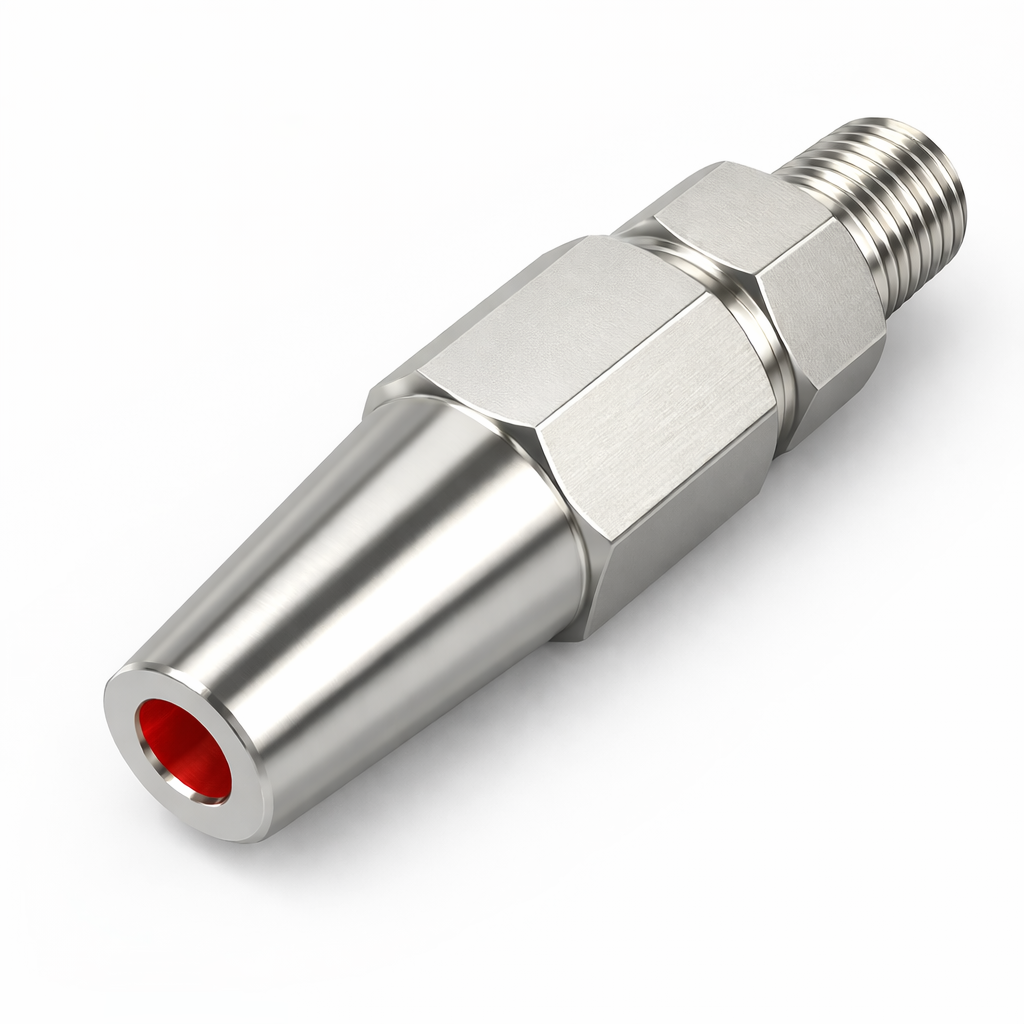

| Component | Valve |
| Material ISO code |
 P - Steel |
| Work material | 32CrMo4 |
| Machine(spindle type) | Horizontal Machining Center |
| Tool family | Holemaking |
| Tool category | Drilling |
| Product name | TungSix-Drill |
| TSR No. | 120D |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | TDS320F32-3 | Indexable drill |
| Insert | WWMU08X408R-DJ | Square type insert |
| Grade | AH9030 | PVD |
Tool life
| Tungaloy | Competitor | |
|---|---|---|
| Tool life (m/insert) | 123.6 | 70.4 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Tool diameter DC (mm) | 32 | 32 |
| Cutting speed V/c (mm/min) | 200 | 225 |
| Feed f (mm/rev) | 0.12 | 0.1 |
| Feed speed Vf (mm/min) | 239 | 224 |
| Coolant | Water soluble(internal) | Water soluble(internal) |
