TungMeister Ti – Flange Cone – AH725
IMPROVED TOOL LIFE
- Sharp cutting edges reduce chattering.
- AH725 significantly improves tool life because of high wear & fracture resistance.
- Tool life: 10 times up.
Share
| Industry | Aerospace |
|---|---|

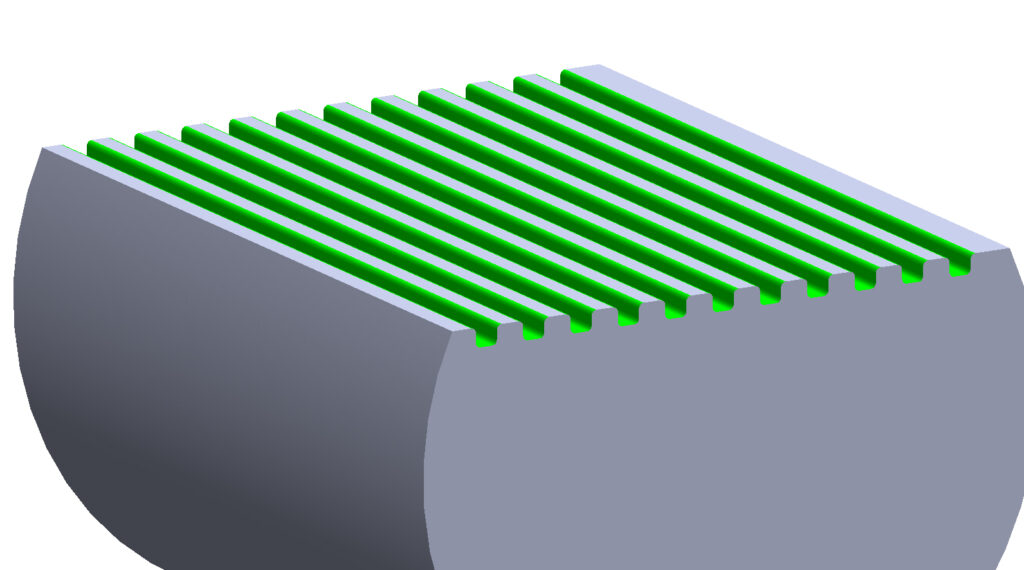

| Component | Flange Cone |
| Material ISO code |
 S - Super-alloys and titanium |
| Work material | Titanium alloy |
| Machine(spindle type) | Dedicated Machine |
| Tool family | Milling |
| Tool category | Face milling |
| Product name | TungMeister |
| TSR No. | 037M |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | VSSD12L090LS08-S-A | Solid endmill |
| Effective number of teeth | 6 | 4 |
| Cutting diameter | 12 | 10 |
| Insert | VEE120L09.0R15-06S08 | |
| Grade | AH725 | K10 (Non-coated) |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 150 | 188 |
| Feed per tooth f/z (mm/t) | 0.04 | 0.06 |
| Feed speed Vf (mm/min) | 960 | 1440 |
| Depth of cut ap (mm) | 0.5 | 0.3 |
| Width of cut ae (mm) | 1 | 1 |
| Coolant | Water soluble | Water soluble |
