TungDrillTwisted – Valve – AH725
IMPROVED PRODUCTIVITY ＆CHIP CONTROL
- AH725 with “PremiumTec” significantly improves chip control.
- The excellent chip control reduces chip sedimentation and improves machining stability.
- Reduced cutting forces lead to a 40% increase in cutting speed and a 25% increase in feed.
Share
| Industry | Oil & Gas |
|---|---|

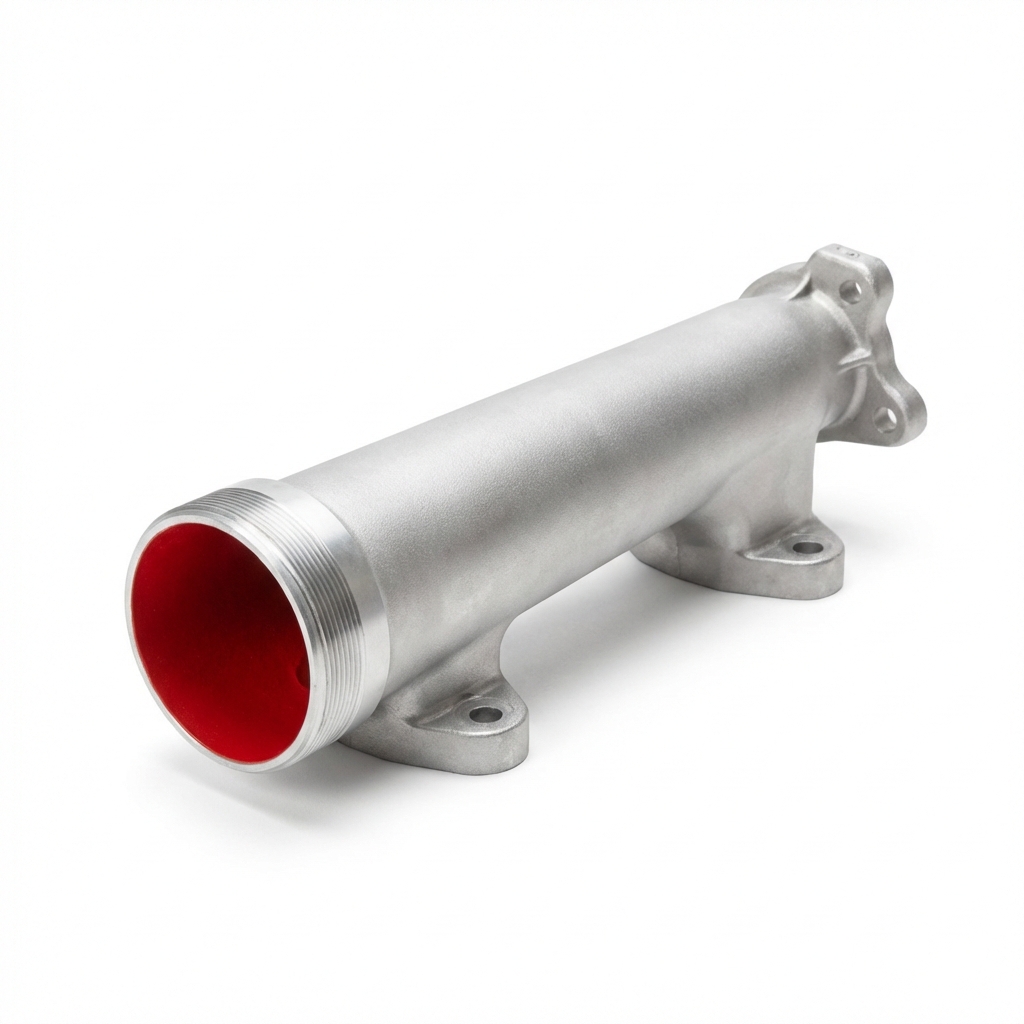

| Component | Valve |
| Material ISO code |
 M - Stainless steel |
| Work material | X2CrNiMo17-12-3 |
| Machine(spindle type) | CNC Lathe |
| Tool family | Holemaking |
| Tool category | Drilling |
| Product name | TungDrillTwisted |
| TSR No. | 022D |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | TDX230F25-2 | Indexable Drill |
| Head | XPMT07H308R-DS | Square insert |
| Insert | AH725 | P30 (PVD) |
| Grade | AH725 | PVD |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Tool diameter DC (mm) | 23 | 23 |
| Hole depth H (mm) | 25 | 25 |
| Cutting speed V/c (mm/min) | 140 | 100 |
| Feed f (mm/rev) | 0.1 | 0.08 |
| Feed speed Vf (mm/min) | 194 | 106 |
| Coolant | Water soluble(Internal) | Water soluble(Internal) |
