DoFeedTri – Mold – AH3225
IMPROVED PRODUCTIVITY & TOOL LIFE
DoFeedTri generated low cutting load thanks to the cutting edge with a large rake angle, ensuring reduced vibration and stable machining at increased parameters. As a result, 1.3 times higher productivity and 1.5 times increase in tool life were achieved.
Share

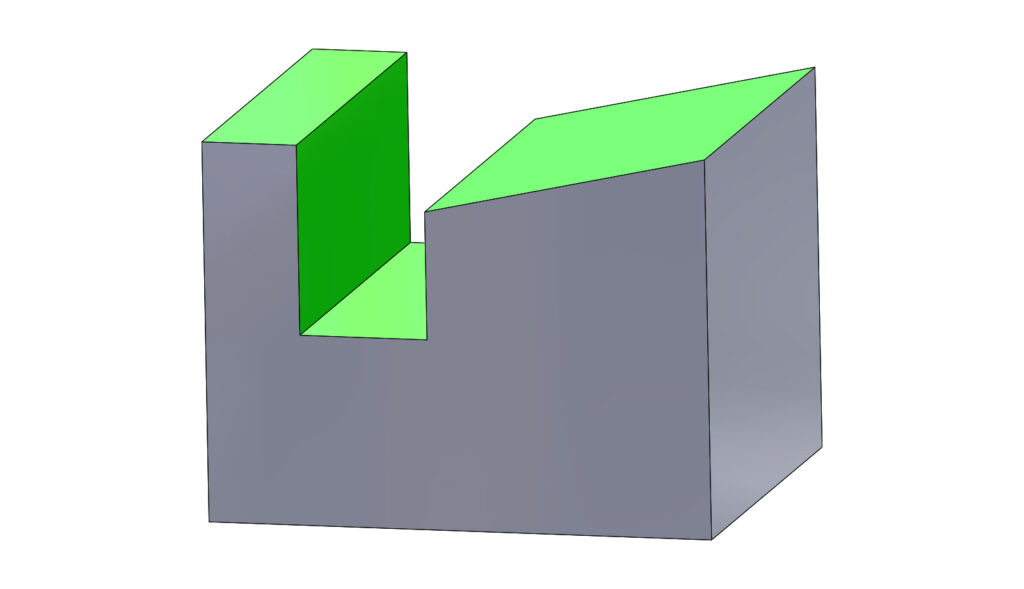

| Industry | Die & Mold |
|---|---|
| Component | Mold |
| Material ISO code |
 P - Steel |
| Work material | PXA30 |
| Machine(spindle type) | Vertical Machining Center Middle(#40,HSK63) |
| Tool family | Milling |
| Tool category | Pocketing |
| Product name | DoFeedTri |
| TSR No. | 1630M |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | HXWX03M032M16R05 | High feed cutter |
| Number of teeth | 5 | 4 |
| Cutting diameter | 32 | 32 |
| Insert | WXMU0303ZER-MM | Positive inserts |
| Number of cutting edges | 6 | 3 |
| Grade | AH3225 | PVD |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (mm/min) | 181 | 161 |
| Feed per tooth f/z (mm/t) | 0.73 | 0.81 |
| Feed speed Vf (mm/min) | 6600 | 5200 |
| Depth of cut ap (mm) | 0.4 | 0.4 |
| Width of cut ae (mm) | 20 | 20 |
| Coolant | Dry | Dry |
