TetraMini-Cut – Sleeve – AH6235
Improve tool life
TetraMini-Cut provided strong insert clamping for added tool rigidity, successfully minimizing the number of passes, which the competitor tool with weak clamping could not achieved. With AH6235 grade insert, tool life has increased by 1.3 times.
Share
| Industry | Engineering |
|---|---|

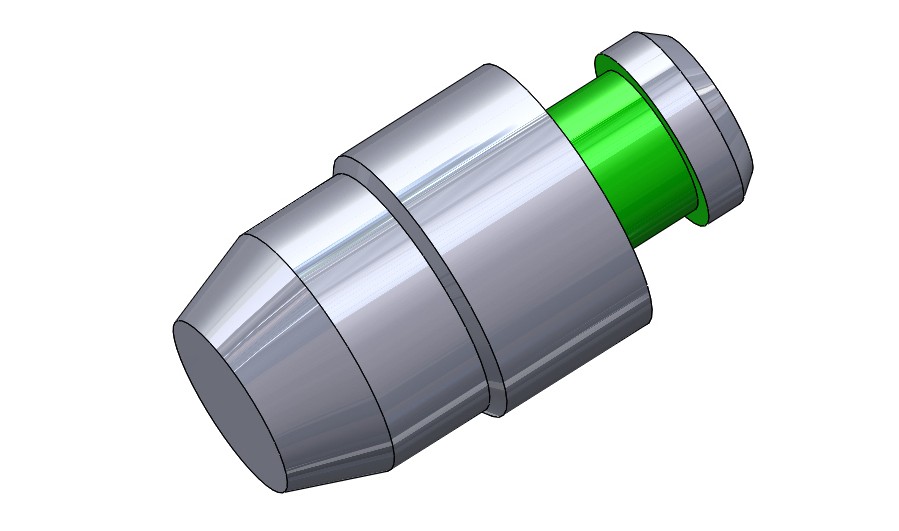

| Component | Sleeve |
| Material ISO code |
 P - Steel |
| Work material | C45 / S45C |
| Machine(spindle type) | CNC Lathe |
| Tool family | Grooving |
| Tool category | External grooving |
| Product name | TetraMini-Cut |
| TSR No. | 5161G |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Holder | STCR2525Z18-CHP | 25mm square shank |
| Insert | TCG18R200-010 | 2 corners insert |
| Edges par insert | 4 | 2 |
| Grade | AH6235 | P25, PVD |
Tool life
| Tungaloy | Competitor | |
|---|---|---|
| Tool life (pcs/edge) | 2000 | 1500 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (mm/min) | 160 | 160 |
| Feed f (mm/rev) | 0.07 | 0.07 |
| Number of pass | 4 | 12 |
| Depth (mm) | 2.5 | 2.5 |
| Coolant | Internal | External |
