TungForce-Rec – Construction machine part – AH3225
IMPROVED TOOL LIFE
The TungForceRec18 achieved stable machining without chipping thanks to its high edge strength.
Share
| Industry | Heavy |
|---|---|

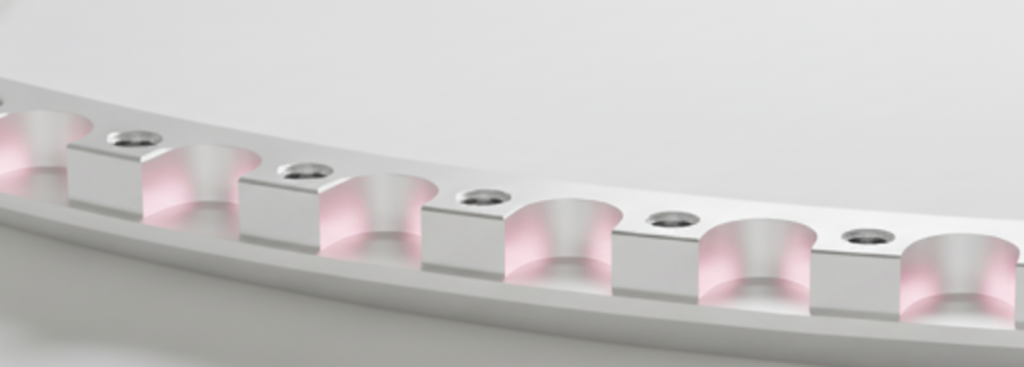

| Component | Construction machinery parts |
| Material ISO code |
 P - Steel |
| Work material | High alloyed steel |
| Machine(spindle type) | Vertical Machining Center Large(#50,HSK100) |
| Tool family | Milling |
| Tool category | Shoulder milling |
| Product name | TungForce-Rec |
| TSR No. | 5071M |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | TPAV18M050B22.0R05 | Shoulder milling cutter |
| Number of teeth | 5 | 5 |
| Cutting diameter | 50 | 50 |
| Insert | AVMT180708PDER-MT | 2 corner type insert |
| Number of cutting edges | 2 | 2 |
| Grade | AH3225 | PVD |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 199.5 | 199.5 |
| Feed per tooth f/z (mm/t) | 0.16 | 0.16 |
| Feed speed Vf (mm/min) | 1000 | 1000 |
| Depth of cut ap (mm) | 3 | 3 |
| Width of cut ae (mm) | 40 | 40 |
| Coolant | External | External |
