ISO-Eco Turn-Medical parts-T9215
Cost reduction and longer tool life
The Customer requested improved tool life and cost reduction in internal turning.
After testing the combination of ISO-Eco Turn and T9215, we achieved a 1.5 times longer tool life with no chattering or other issues. Furthermore, the use of ISO-Eco Turn achieved cost reduction.
ISO-Eco Turn is an effective solution for reducing costs in internal turning.
Share
| Industry | Medical |
|---|---|

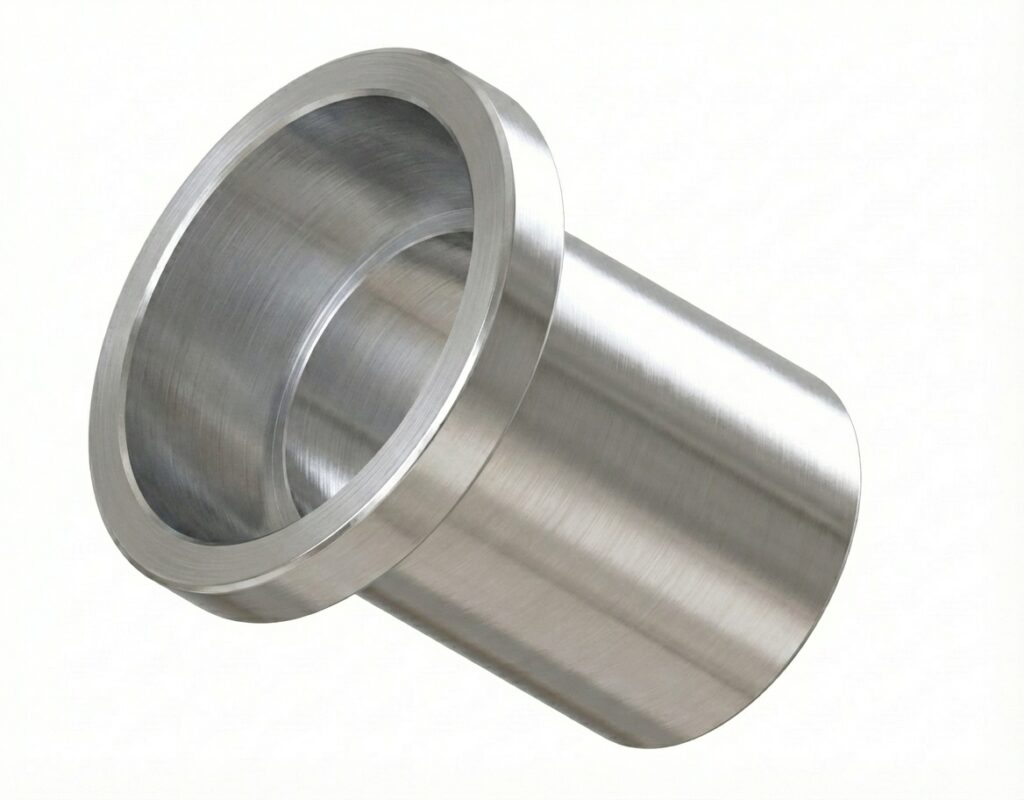

| Component | Medical Parts |
| Material ISO code |
 P - Steel |
| Work material | 16MnCrS5 |
| Machine(spindle type) | CNC Lathe |
| Tool family | Turning |
| Tool category | Internal turning |
| Product name | ISO-EcoTurn |
| TSR No. | 5542T |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Holder | A20Q-PCLNR0904-D250 | A20R-SCLCR09-D220 |
| Insert | CNMG090408E-TM | CCMT09T308-** |
| Edges par insert | 4 | 2 |
| Grade | T9215 | CVD(P25) |
Tool life
| Tungaloy | Competitor | |
|---|---|---|
| Tool life (pcs/edge) | 190 | 130 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 360 | 360 |
| Feed f (mm/rev) | 0.25 | 0.25 |
| Depth of cut ap (mm) | 2 | 2 |
| Coolant | WET | WET |
