UOP, Attachment, EvoTroco
IMPROVED TOOL LIFE
UOP’s MEGA-Troco features a sharp cutting design and chip splitter, enabling stable machining even on workpieces with low clamping rigidity. It has achieved twice the tool life compared to competing products.
Share
| Industry | Automotive |
|---|---|
| Component | Attachment |
| Material ISO code |
 P - Steel |
| Work material | S35C |
| Machine(spindle type) | Vertical Machining Center Middle(#40,HSK63) |
| Tool family | Milling |
| Tool category | Shoulder milling |

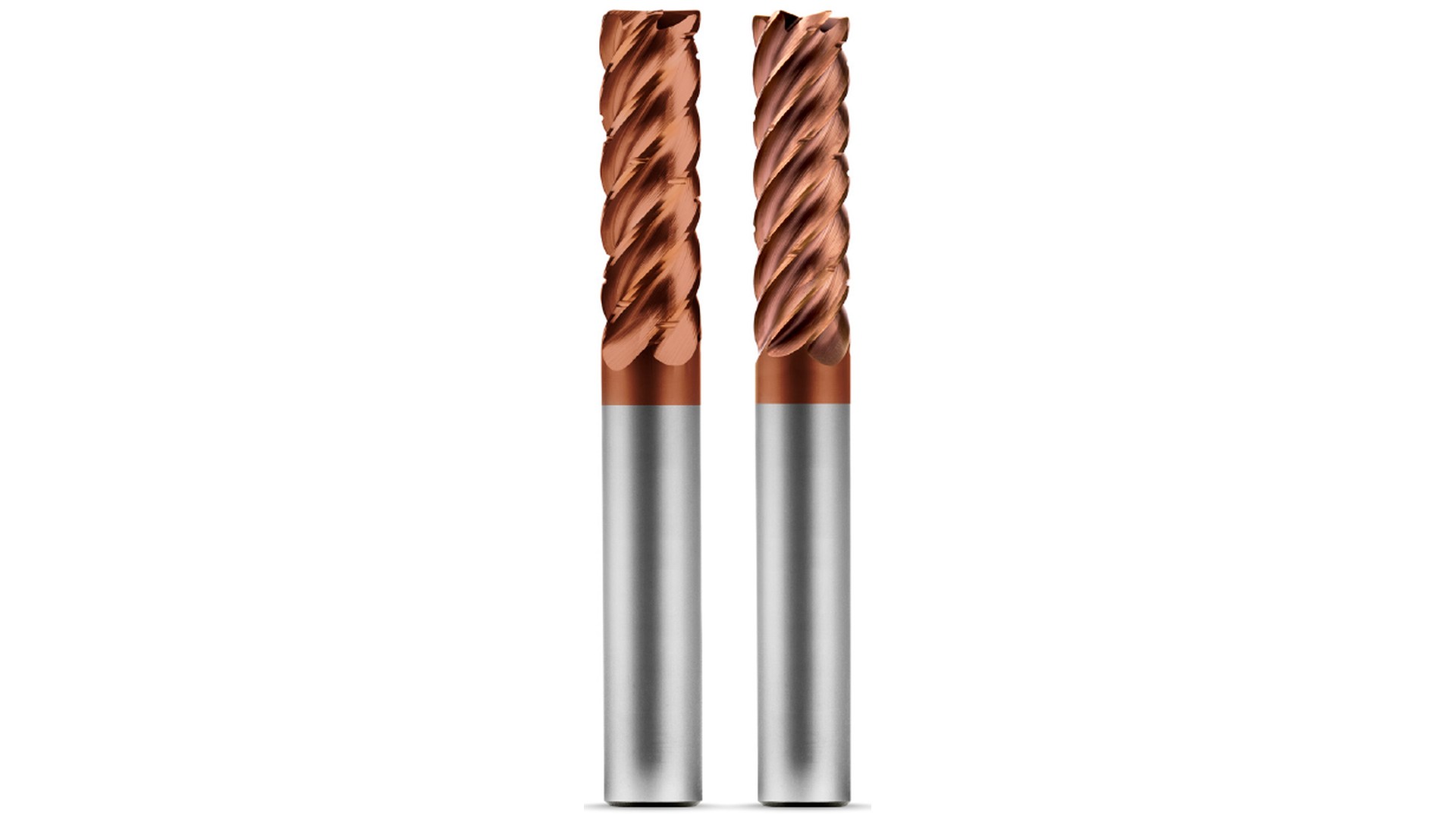

| Product name | UOP-MegaTroco |
| TSR No. | 5502M |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | 797TRU5R051202KMX | |
| Number of teeth | 5 | 4 |
| Cutting diameter | 12 | 12 |
| Grade | EvoTroco | PVD |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 200 | 200 |
| Feed per tooth f/z (mm/t) | 0.060 | 0.075 |
| Feed speed Vf (mm/min) | 1600 | 1600 |
| Depth of cut ap (mm) | 35 (Max) | 35 (Max) |
| Width of cut ae (mm) | 0.2-1.5 | 0.2-1.5 |
| Coolant | Emulsion | Emulsion |
