BXA20 – Transmission shaft
IMPROVED TOOL LIFE
The WavyJoint technology insert successfully machined 150 pcs/corner, almost twice that of the competitor’s, without CBN tip failure.
Share
| Industry | Automotive |
|---|---|

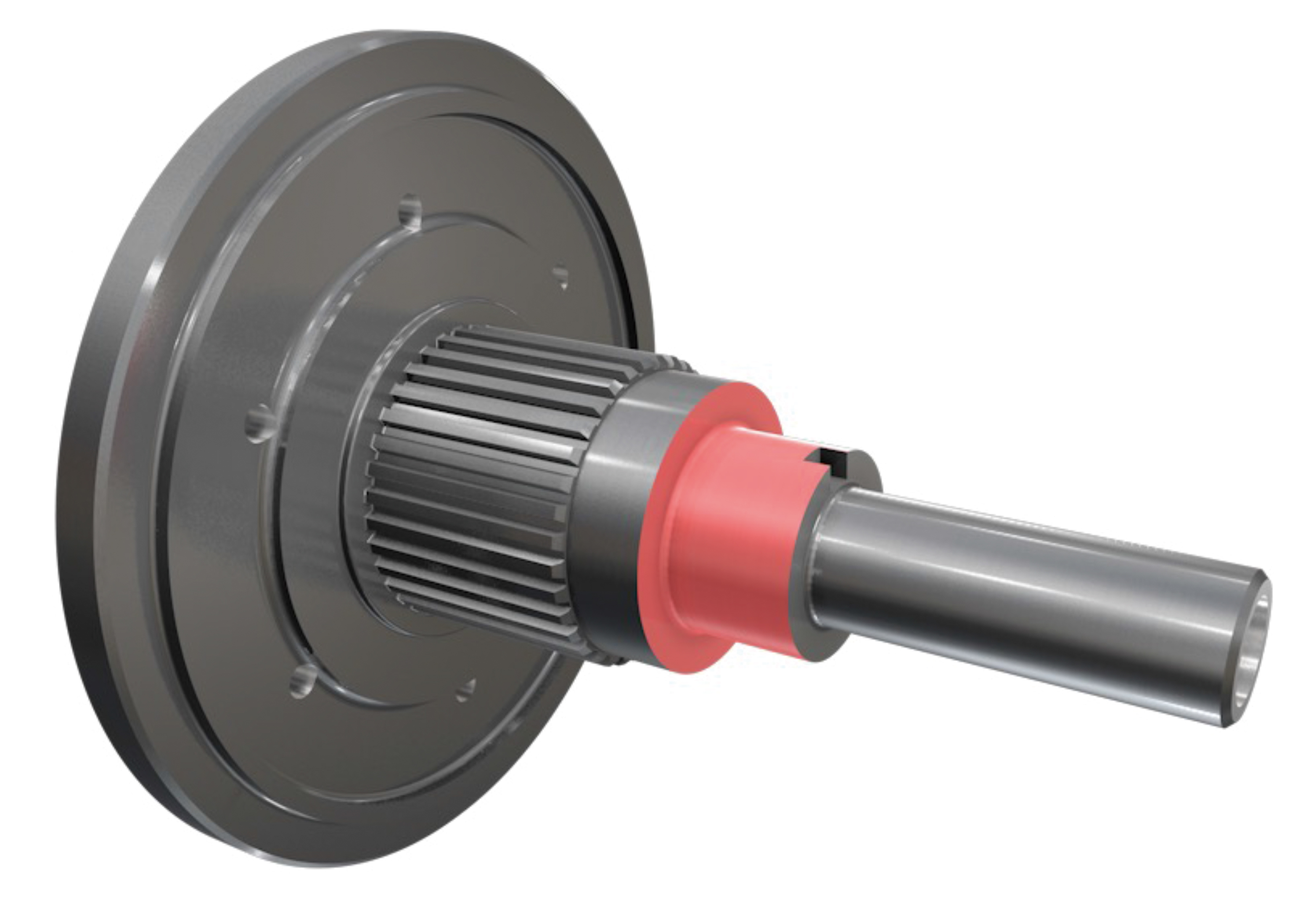

| Component | Transmission shaft |
| Material ISO code |
 H - Hardened material |
| Work material | SCM420 |
| Machine(spindle type) | CNC Lathe |
| Tool family | Turning |
| Tool category | External & Face turning |
| Product name | BXA20 |
| TSR No. | 5320T |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Insert | 4QS-CNGA120412 | |
| Edges par insert | 4 | |
| Grade | BXA20 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 100 | |
| Feed f (mm/rev) | 0.1 - 0.2 | |
| Depth of cut ap (mm) | 0.7 - 1 | |
| Coolant | Dry |
