DeepTriDrill – Copper – Drilling
Achieve Cost-Effective Deep Drilling with Innovative Solutions
Productivity Savings Drilling Copper.
The solution features improved cutting conditions, resulting in a 65% cost reduction per part.
The enhanced productivity savings are realized through fewer tool changes and extended tool life.

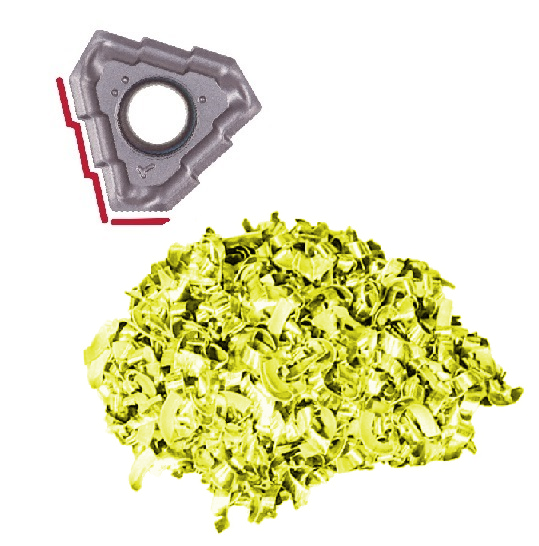

Swarf exhaustion is excellent, chips are short and tigh. Overall drilling operaiton is very stable.
Customer is satisfied with the high metal removal rate and a quick return on investment.
Share
| Industry | Engineering |
|---|---|
| Component | Cylinder |
| Material ISO code |
 N - Non-ferrous metal |
| Work material | Copper alloy |
| Material hardness | 110HB |
| Machine(spindle type) | Horizontal Machining Center |
| Tool family | Holemaking |
| Tool category | Deep hole drilling |
| Product name | DeepTri-Drill |
| TSR No. | 5182D |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | MCTR22.00XM32-15 | brazed gundrill |
| Insert | TOHT110405R-NDJ AH725 | brazed tip |
Tool life
| Tungaloy | Competitor | |
|---|---|---|
| Tool life (m/insert) | 52 | 21 |
| Number of workpieces (pcs/insert) | 250 | 100 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Tool diameter DC (mm) | 22 | 22 |
| Hole depth H (mm) | 210 | 210 |
| Cutting speed V/c (m/min) | 110 | 55 |
| Feed f (mm/rev) | 0.1 | 0.06 |
| Feed speed Vf (mm/min) | 159 | 48 |
