NTK Ceramic – Vane Ring Aircraft Parts – SX9
NTK Ceramic - Vane Ring Aircraft Parts - SX9
SX9 achieved:
- 8-10 times faster
- Annual total cost can be 42.9% times cut
Share
| Industry | Aerospace |
|---|---|

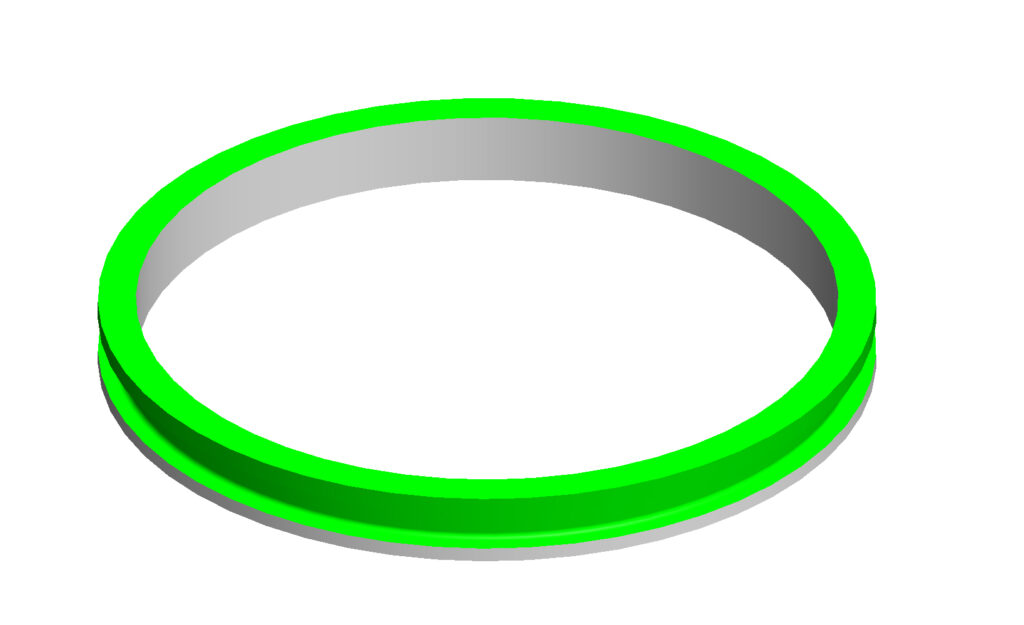

| Component | Ring |
| Material ISO code |
 S - Super-alloys and titanium |
| Work material | Inconel 713 LC |
| Machine(spindle type) | Horizontal Machining Center |
| Tool family | Milling |
| Tool category | Face milling |
| Product name | SX9 Ceramic Insert |
| TSR No. | 5197M |
Tool
| Tungaloy - NTK | Competitor | |
|---|---|---|
| Number of teeth | 4 | 4 |
| Cutting diameter | Φ12mm | Φ6ｍｍ |
| Insert | RCEM120H4R150S | |
| Grade | SX9 | Carbide |
Cutting conditions
| Tungaloy - NTK | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 375.7 | 45.6 |
| Feed per tooth f/z (mm/t) | 0.04 | 0.02 |
| Feed speed Vf (mm/min) | 1,422.4 | 152.4 |
| Depth of cut ap (mm) | 1.9 | 1.0 |
| Width of cut ae (mm) | 3.8 | 2.0 |
