TungShortCut – Shaft Parts – SH7025
REDUCTION OF MATERIAL COSTS
Previously, parting-off was performed using a 1.5 mm width insert.
After switching to a 1.0 mm width TungShortCut insert, stable machining was achieved without issues such as chip evacuation problems or insert breakage.
By changing to a 1.0 mm width insert, a reduction in material costs became possible.
Share
| Industry | Engineering |
|---|---|

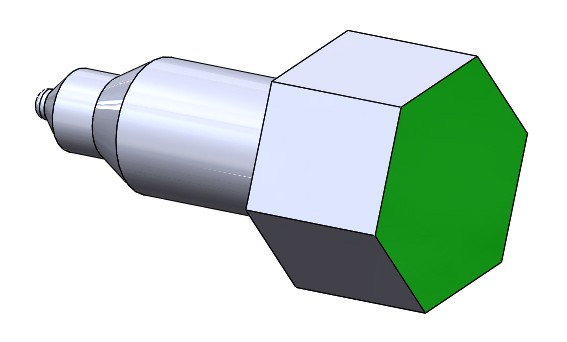

| Component | Shaft Parts |
| Material ISO code |
 M - Stainless steel |
| Work material | SUS430 |
| Machine(spindle type) | Swiss Lathe |
| Tool family | Grooving |
| Tool category | Parting off |
| Product name | TungShortCut |
| TSR No. | 5181T |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Holder | QC10-JTTELS1D16-CHP | 10X10 shank |
| Insert | DGS100SF-003 | 2 corner insert |
| Edges par insert | 2 | 2 |
| Cutting width | 1 | 1.5 |
| Grade | SH7025 | PVD |
Tool life
| Tungaloy | Competitor | |
|---|---|---|
| Tool life (pcs/edge) | 20 | 20 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 80 | 80 |
| Feed f (mm/rev) | 0.02 | 0.02 |
| Coolant | Wet(External) | Wet(External) |
