DrillMeister -Fitting connecter- Longer Tool Life in INCONEL 718 Drilling
IMPROVED TOOL LIFE
In drilling operations for INCONEL 718, replacing the conventional DMP118 head with the DMM118 head optimized for heat-resistant alloys improved tool life from 100 to 160 holes without changing cutting conditions, achieving a 60% increase in tool life. The total machined length increased from 1,000 mm to 1,600 mm while maintaining stable machining performance
Share
| Industry | Aerospace |
|---|---|

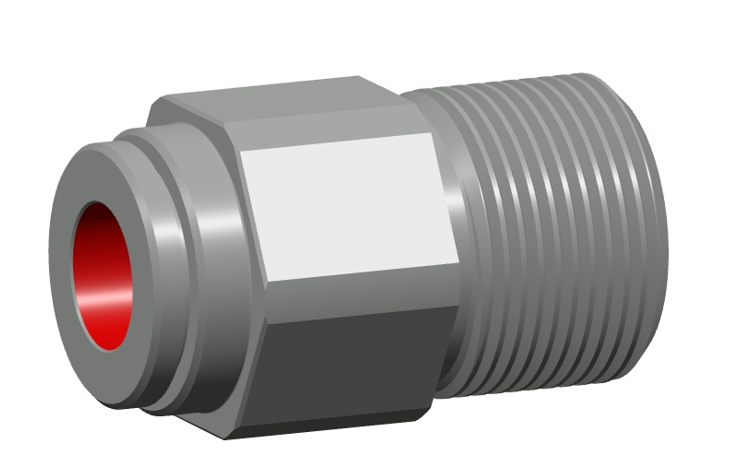

| Component | Fitting |
| Material ISO code |
 S - Super-alloys and titanium |
| Work material | Inconel 718 |
| Machine(spindle type) | CNC Lathe |
| Tool family | Holemaking |
| Tool category | Drilling |
| Product name | DrillMeister |
| TSR No. | 5689H |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | TID115F16-3 | TID115F16-3 |
| Head | DMM118 AH9130 | DMP118 AH9130 |
| Grade | AH9130 | AH9130 |
Tool life
| Tungaloy | Competitor | |
|---|---|---|
| Tool life (m/insert) | 1.6 | 1 |
| Number of workpieces (pcs/insert) | 160 | 100 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Tool diameter DC (mm) | 11.8 | 11.8 |
| Hole tolerance grade | IT10 | IT10 |
| Hole depth H (mm) | 10 | 10 |
| Cutting speed V/c (m/min) | 30 | 30 |
| Feed f (mm/rev) | 0.06 | 0.06 |
| Feed speed Vf (mm/min) | 809 | 809 |
| Coolant | Internal coolant | Internal coolant |
