DrillMeister DMH -Wheel hub bearing-
IMPROVED TOOL LIFE AND PRODUCTIVITY
The DrillMeister DMH151 demonstrated outstanding performance in the mass-production drilling of S50C wheel hubs. Compared with the existing solid carbide drill, tool life improved by 70% while productivity increased by 22%. The test proved that DrillMeister can successfully deliver longer tool life, higher productivity, and lower manufacturing costs simultaneously in high-volume drilling applications. The DMH head, featuring a reinforced cutting-edge geometry, provides extended tool life, especially in through-hole applications, as demonstrated in this practical example.
Share
| Industry | Automotive |
|---|---|

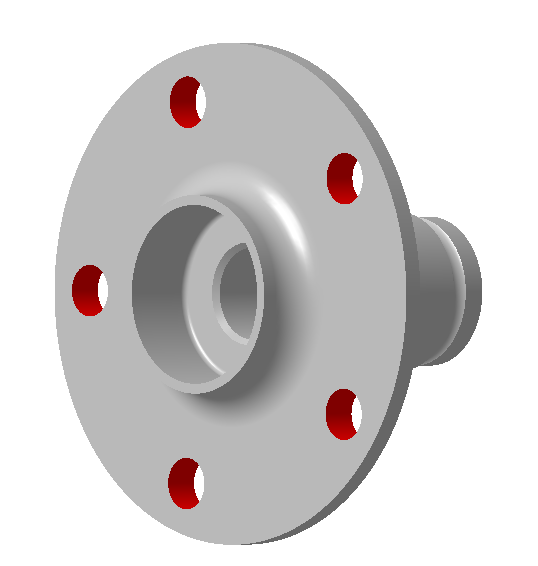

| Component | Wheel bearing Hub part |
| Material ISO code |
 P - Steel |
| Work material | S50C |
| Machine(spindle type) | Vertical Machining Center Small(#30,HSK40) |
| Tool family | Holemaking |
| Tool category | Drilling and chamfer |
| Product name | DrillMeister |
| TSR No. | 5672D |
Tool
| Tungaloy | Competitor | |
|---|---|---|

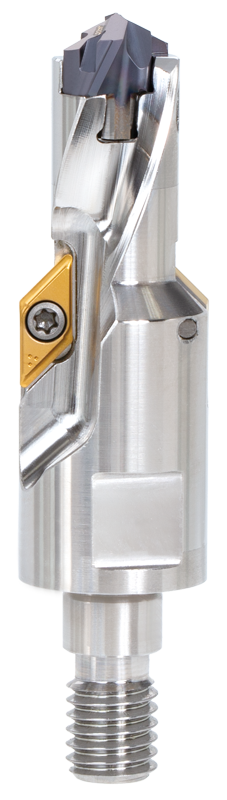

| Body | TID special body with chamfer / TungFlex | Soild carbide drill 3xD |
| Head | DMH151 | |
| Grade | AH9130 | PVD |
Tool life
| Tungaloy | Competitor | |
|---|---|---|
| Tool life (m/insert) | 123.25 | 72.5 |
| Machining length (m) | 144 | 120 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Tool diameter DC (mm) | 15.1 | 15.1 |
| Hole tolerance grade | IT10 | IT10 |
| Surface quality required Ra (μm) | Good | Good |
| Hole depth H (mm) | 14.5 | 14.5 |
| Cutting speed V/c (m/min) | 85 | 70 |
| Feed f (mm/rev) | 0.3 | 0.3 |
| Feed speed Vf (mm/min) | 538 | 443 |
| Coolant | Extenal coolant | External coolant |
