DeepTriDrill – Door Shaft – AH9130
DeepTriDrill improved tool life - stable drilling
DeepTridrill demonstrated excellent performance in both machine load and surface roughness. Machining noise was also significantly reduced.
With a traditional brazed gundrill, once the tool is worn out, it must be completely removed from the machine. This is a complicated procedure that brings production to a halt.

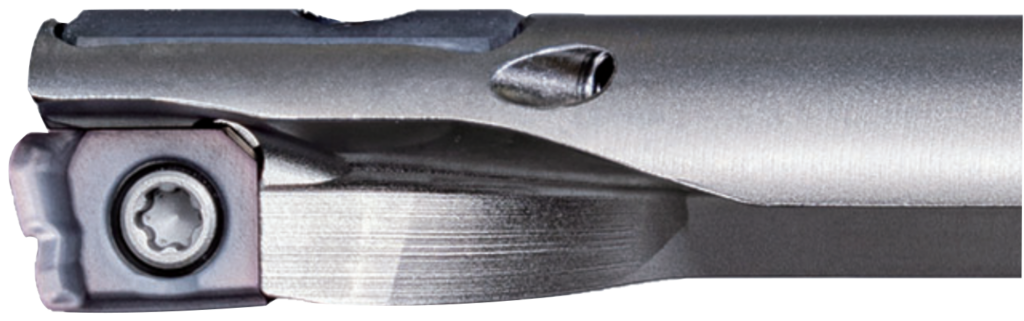

In contrast, the indexable‑type gundrill allows spare parts to be replaced directly on the machine, resulting in extremely short machine downtime.
Share
| Industry | Aerospace |
|---|---|
| Component | Door Shaft |
| Material ISO code |
|
| Work material | 15-5PH |
| Machine(spindle type) | Gun drill machine |
| Tool family | Holemaking |
| Tool category | Drilling |
| Product name | DeepTri-Drill |
| TSR No. | 5199D |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | TRLG | Brazed Gun-drill |
| Insert | ZSGT040104R-NDJ AH9130 | brazed tip |
| Grade | AH9130 | carbide tip |
Tool life
| Tungaloy | Competitor | |
|---|---|---|
| Tool life (m/insert) | 4.480 | 3.584 |
| Number of workpieces (pcs/insert) | 10 | 8 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Tool diameter DC (mm) | 08.00 | 08.09 |
| Hole depth H (mm) | 448 | 448 |
| Cutting speed V/c (m/min) | 30 | 30 |
| Feed f (mm/rev) | 0.017 | 0.017 |
| Feed speed Vf (mm/min) | 20.3 | 20.1 |
