AH905 – Aerospace Parts – AH905
TOOL LIFE
High productivity
- Specified grade for Superalloy “HMM chip breaker” significantly reduce the contact area with the chips. Specifically, that can be 220% improvement in machining efficiency than the current items.
Stabilization
- An insert of smooth surface prevents chip adhesion and improves chip flow. Thus, AH905 offers 1.3 times longer tool life than competitors!
Share
| Industry | Aerospace |
|---|---|

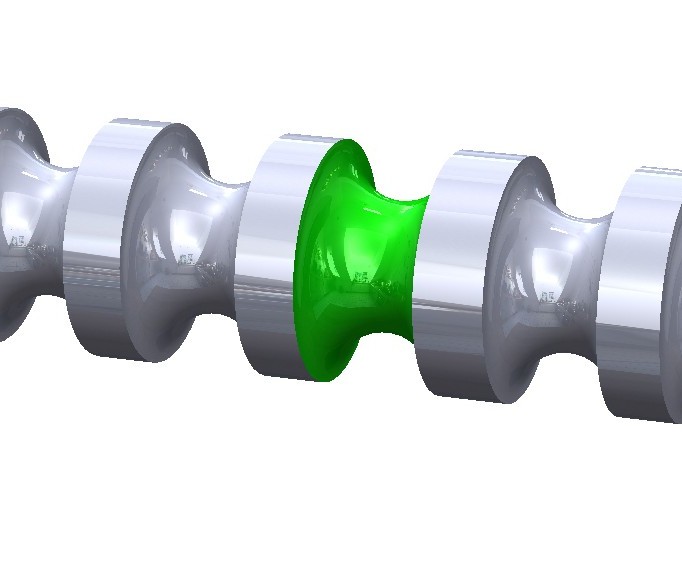

| Component | Aerospace parts |
| Material ISO code |
 S - Super-alloys and titanium |
| Work material | Inconel 718 |
| Machine(spindle type) | CNC Lathe |
| Tool family | Turning |
| Tool category | External turning |
| Product name | AH905 |
| TSR No. | 233T |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Holder | PCLNR3232P16E | PCLNR3232P16E |
| Insert | CNMG160612-HMM | CNMG160612-Medium chip breaker |
| Grade | AH905 | PVD |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 67 | 41 |
| Feed f (mm/rev) | 0.2 | 0.15 |
| Depth of cut ap (mm) | 1.0x3pass | 1.0x3pass |
| Coolant | water soluble | water soluble |
