NTK DS holder series – Precision Machine Parts – ST4
NTK DS holder series - Precision Machine Parts - ST4
The combination of ST4 and GX breaker not only greatly reduces tool wear but also improves chip evacuation by breaking chips into smaller pieces. When used together with the DS Holder series (DS-GTTL-OH), it is effective even in grooving operations where coolant supply to the cutting edge is difficult. This improvement in chip control has doubled tool life. In addition, chatter on the machined surface has been reduced.
Share
| Industry | Miniature |
|---|---|
| Component | Precision Machine Parts |
| Material ISO code |
 M - Stainless steel |
| Work material | Magnetic Stainless Steel |
| Machine(spindle type) | Swiss Lathe |
| Tool family | Grooving |
| Tool category | External grooving |

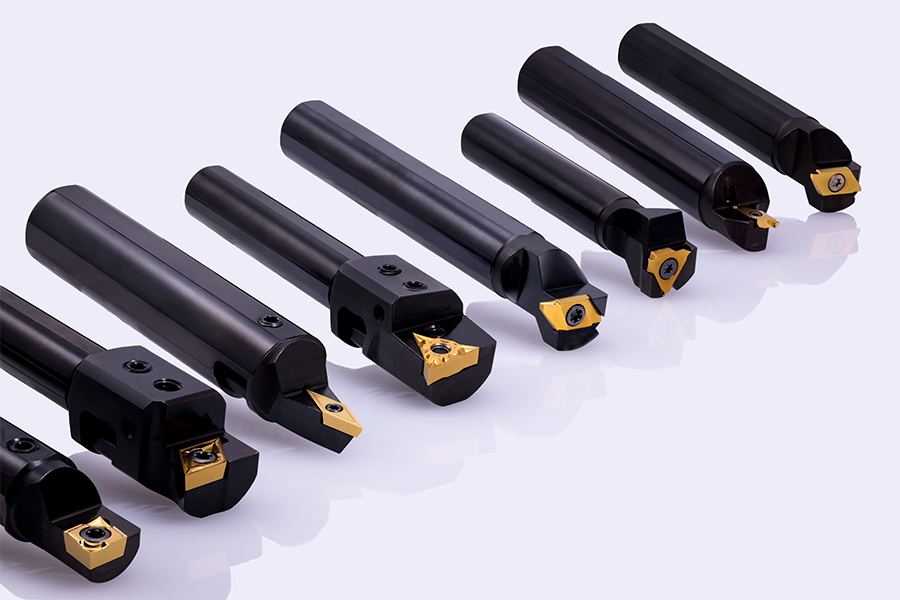

| Product name | DS holder series |
| TSR No. | 5461T |
Tool
| Tungaloy - NTK | Competitor | |
|---|---|---|
| Holder | DS-GTTL19-OH | Round shank |
| Insert | GTMH32200RGX01 | 3-corner grooving insert with a 2mm width |
| Edges par insert | 3 | 3 |
| Grade | ST4 | PVD Carbide |
Tool life
| Tungaloy - NTK | Competitor | |
|---|---|---|
| Tool life (pcs/edge) | 1500 | 700 |
Cutting conditions
| Tungaloy - NTK | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 250 | 250 |
| Feed f (mm/rev) | 0.05 | 0.05 |
| Depth of cut ap (mm) | 0.55 | 0.55 |
| Number of pass | 3 | 3 |
| Coolant | WET | WET |
