DrillMeister -Shaft flange- long over hang solution
IMPROVE PRODUCTIVITY
This case involves improving machining efficiency in shaft work.

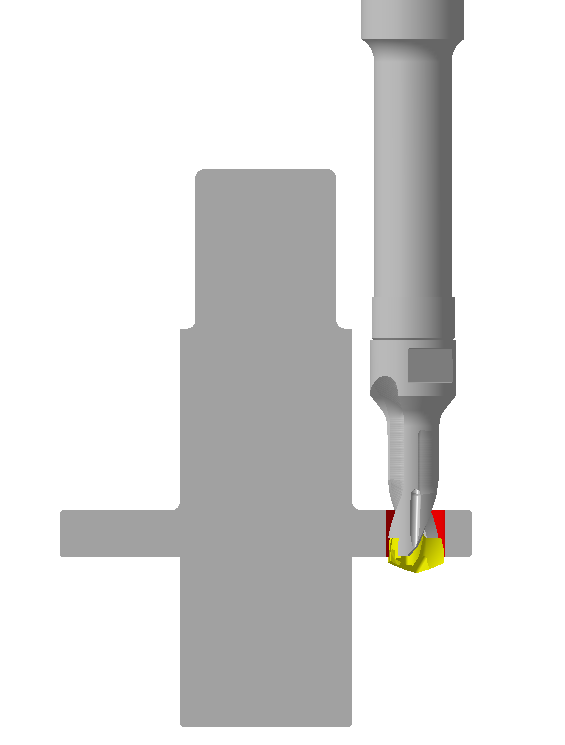

For a flanged shaft, a 45 mm overhang (6.8×D) was required to avoid interference with the flange surface during drilling.
We proposed and evaluated the DrillMeister TUNGFLEX type, which proved highly effective.
As a result, machining efficiency was approximately doubled compared with the previous setup, while maintaining the same tool life — successfully machining 1,000 parts (two holes per workpiece) without any issues.
Share
| Industry | Automotive |
|---|---|
| Component | Shaft flange |
| Material ISO code |
 P - Steel |
| Work material | 45C |
| Machine(spindle type) | Machining Center Small(#30,HSK40) |
| Tool family | Holemaking |
| Tool category | Through holes |
| Product name | DrillMeister |
| TSR No. | 5439H |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | TID065S06-2 | Solid drill 8xD |
| Head | DMC066 AH9130 | |
| Grade | AH9130 | PVD |
Tool life
| Tungaloy | Competitor | |
|---|---|---|
| Number of workpieces (pcs/insert) | 1000 | 1000 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Tool diameter DC (mm) | 6.6 | 6.6 |
| Hole tolerance grade | IT10 | IT10 |
| Pilot hole diameter (mm) | NON | NON |
| Hole depth H (mm) | 5.5 | 5.5 |
| Cutting speed V/c (m/min) | 89 | 79 |
| Feed f (mm/rev) | 0.09 | 0.05 |
| Feed speed Vf (mm/min) | 386 | 191 |
| Coolant | Internal coolant | Internal coolant |
