NTK Ceramic – Hook – SX7
NTK Ceramic - Hook - SX7
By using SX7, the cutting speed (SFM) and spindle speed (RPM) have approximately doubled, enabling significantly faster machining. Furthermore, the feed per tooth (IPT) and feed rate (IPM) have increased by about four times, resulting in a substantial improvement in cutting efficiency and overall productivity.
As a result, machining time has been reduced and tool utilization efficiency has been enhanced, contributing to improved overall production performance.
Share
| Industry | Aerospace |
|---|---|

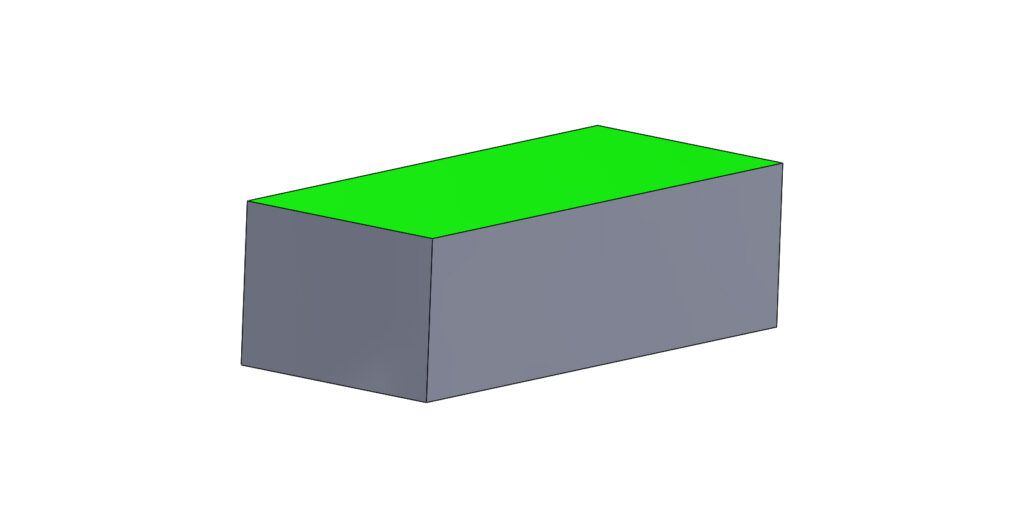

| Component | Hook |
| Material ISO code |
 S - Super-alloys and titanium |
| Work material | 17-4PH |
| Machine(spindle type) | CNC Lathe |
| Tool family | Milling |
| Tool category | Face milling |
| Product name | SX7 Ceramic Insert |
| TSR No. | 5430M |
Tool
| Tungaloy - NTK | Competitor | |
|---|---|---|
| Body | RPIW200S075R04 | |
| Insert | RPGN120400T00820 | |
| Grade | SX7 | Carbide |
Cutting conditions
| Tungaloy - NTK | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 255.4 | 127.7 |
| Feed per tooth f/z (mm/t) | 0.064 | 0.016 |
| Feed speed Vf (mm/min) | 406.4 | 101.6 |
| Depth of cut ap (mm) | 0.76 | 0.76 |
| Coolant | DRY | DRY |
