VaribleMeister- Pull stud- AH710
IMPROVED PRODUCTIVITY
Finishing process of the wrench flat area on the pull stud after heat treatment. With VariableMeister 7-flute, it was possible to improve machining efficiency while maintaining finishing accuracy, achieving 2.6 times higher productivity and equivalent tool life, which resulted in high customer satisfaction.
Share
| Industry | Machine Tool Builders |
|---|---|
| Component | Tooling |
| Material ISO code |
 H - Hardened material |
| Work material | H13 |
| Machine(spindle type) | Multi-Tasking Machine |
| Tool family | Milling |
| Tool category | Shoulder milling |

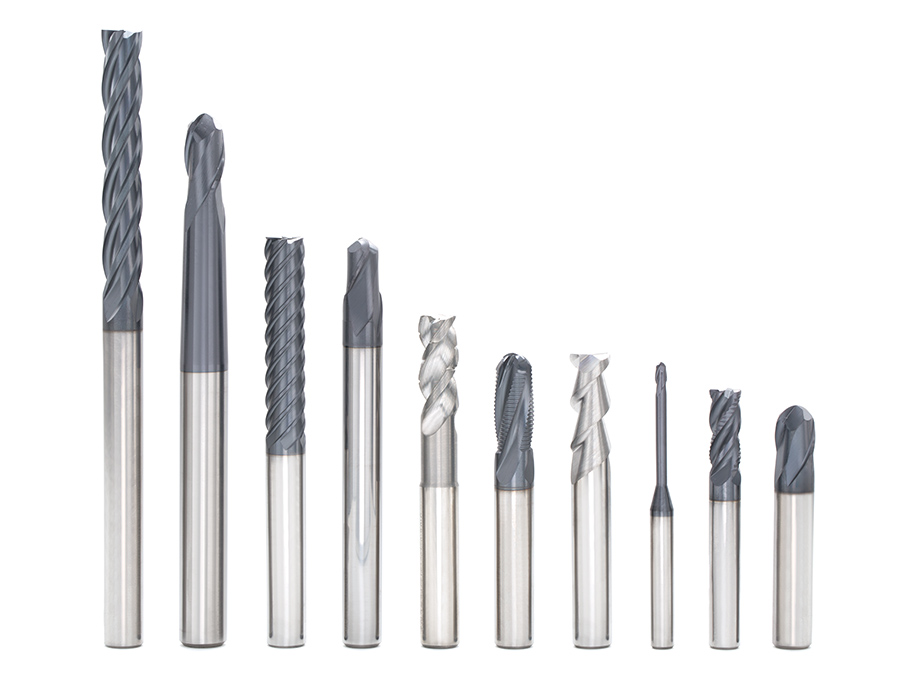

| Product name | VariableMeister |
| TSR No. | 5422M |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Body | TEC100H7-20C10CF-M72 | |
| Number of teeth | 7 | 4 |
| Cutting diameter | 10 | 10 |
| Overhang (mm) | 20 | 20 |
| Grade | AH710 | PVD |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 97 | 97 |
| Feed per tooth f/z (mm/t) | 0.03 | 0.02 |
| Feed speed Vf (mm/min) | 648 | 247 |
| Depth of cut ap (mm) | 1 | 1 |
| Width of cut ae (mm) | 0.1 | 0.1 |
| Coolant | Non | Non |
