TinyInternalCut-Axel Shaft-X6CrNiMo19-13-4
IMPROVED TOOL LIFE
The current brazed tools have unstable lifespans and experience sudden breakage.
TinyInternalCut has achieved stable machining life and extended tool life by 1.5 times.
Share
| Industry | Engineering |
|---|---|
| Component | Axel Shaft |
| Material ISO code |
 M - Stainless steel |
| Machine(spindle type) | CNC Lathe |
| Tool family | Grooving |
| Tool category | Internal threading |

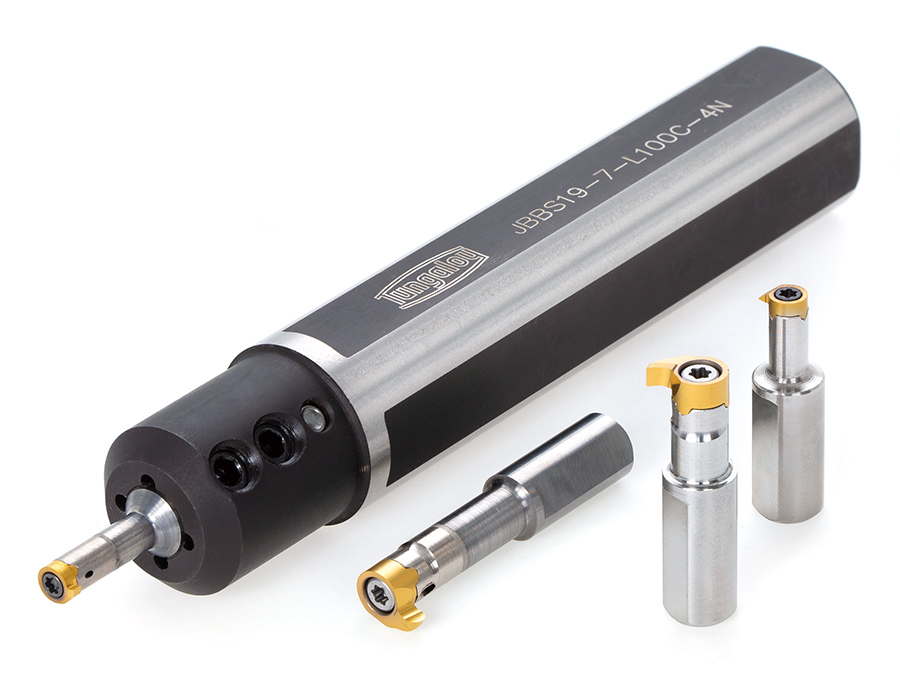

| Product name | TinyInternalCut |
| TSR No. | 5418T |
Tool
| Tungaloy | Competitor | |
|---|---|---|
| Sleeve | JBBS16-7-L100C-4N | E07180-SMR5 |
| Insert | MTR560F007-D07 SH7025 | Brazed tools |
| Edges par insert | 1 | 1 |
| Grade | SH7025 | K10 |
Tool life
| Tungaloy | Competitor | |
|---|---|---|
| Tool life (pcs/edge) | 1200 | 800 |
Cutting conditions
| Tungaloy | Competitor | |
|---|---|---|
| Cutting speed V/c (m/min) | 60 | 60 |
| Feed f (mm/rev) | 1.25 | 1.25 |
| Depth of cut ap (mm) | 0.07 | 0.07 |
| Thread size | M10 | M10 |
| Pitch (mm) | 1.25 | 1.25 |
| Number of pass | 6 | 6 |
| Depth (mm) | 0.677 | 0.677 |
| Coolant | wet | wet |
